Details

---

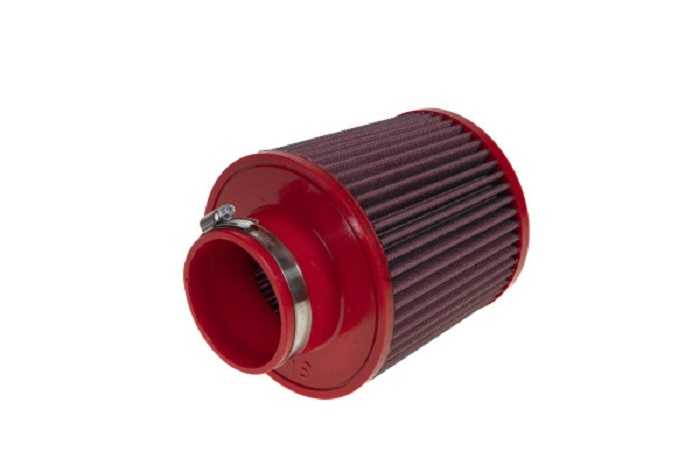

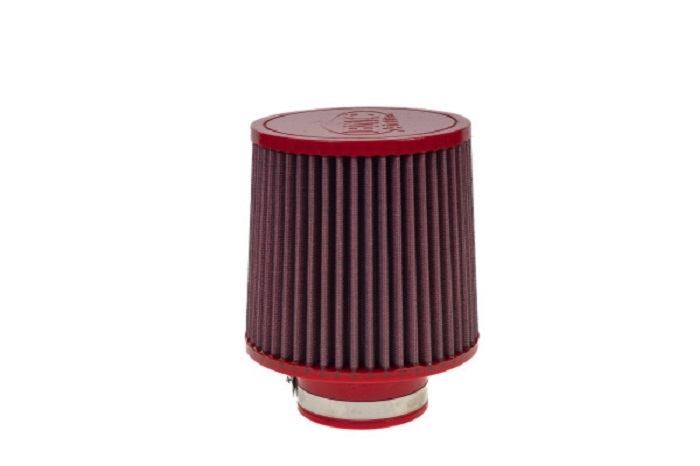

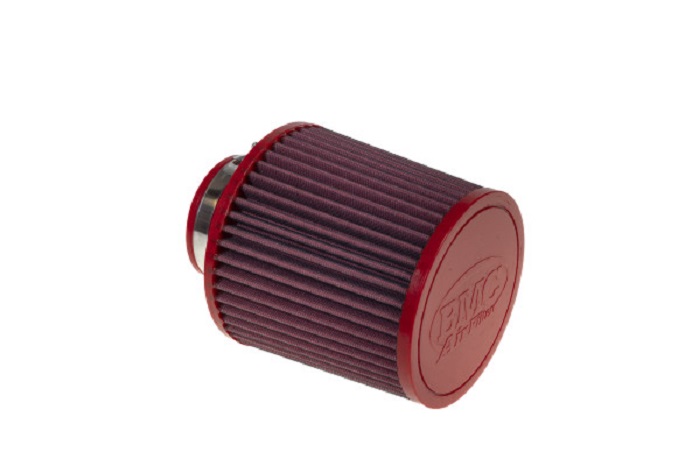

BMC conical filters for direct air intake can be installed on most types of engine by removing the original airbox. BMC direct induction conical filters are manufactured using a characteristic red rubber that allows the connection of the intake to be particularly resistant to both engine stress and heat without suffering from deformations caused by the high temperature.

Technical features
Single Air
Flange Number : 1
Flange Length (mm) : 43
Flange Internal Diameter Ø1 (mm) : 76
External Base Diameter Ø2 (mm) : 150
Height - H2 (mm) : 183
Height - H1 (mm) : 140
Top External Diameter Ø3 (mm) : 134
Top Material/Finish : Polyurethane
